Departing Traffic

OMDB - Dubai International

Flight Planning: Route(s)

Pilots can find valid routes for most flights departing from Dubai on SimBrief by choosing the "Preferred Route" option. Our operations department updates the "Preferred Route" on SimBrief with every AIRAC cycle, ensuring compliance with Air Traffic Flow Management (ATFM) regulations in the Middle East and Eurocontrol IFPS validation.

Simbrief Preferred Route

Figure 1-1: Simbrief Preferred Route

Simbrief Preferred Route

Figure 1-2: Simbrief Preferred Route

Flight Planning: Standard Instrument Departure (SID)

Controllers will assign a Standard Instrument Departure (SID) based on the first waypoint in your flight plan, guiding you out of the Dubai Terminal Maneuvering Area (TMA). Refer to the table below to see which SID you can expect. If your waypoint isn't listed in the table, ensure your AIRAC cycle is up to date. If your AIRAC is outdated, please inform the controller promptly so we can arrange an omnidirectional departure for you. All initial climbs are set at 4000ft!

Waypoint 12L/R 30L/R
ANVIX 5G 7F
DAVMO 4G 4F
EMERU 2G 2F
IVURO 1G 1F
KUTLI 4G 4F
MIROT 3G 3F
NABIX 3G 3F
RIDAP 3G 2F
SENPA 3G 2F

Note

Please be aware that the departures listed above apply to both the left and right runways. At Dubai International, there are no runway-specific SIDs, so your clearance will not include a designated runway. You can determine your departure runway by checking the Automatic Terminal Information Service (ATIS).

Getting your clearance

Departing aircraft shall contact Dubai Delivery 10 minutes prior to start-up and pass the following information:

  • Aircraft Callsign
  • Aircraft Type
  • Parking Stand
  • Requested Flight Level
  • Destination
  • Standard Instrument Departure (and departure speed if unable to comply with SID minimum speed restrictions)
  • Current Departure ATIS Information
  • Aircraft routing via M318 to report crossing level for GABKO if below FL150

The preferred method for obtaining your clearance is through datalink. To request clearance via Hoppie datalink, send your request to OMDB. Please note that logging on to the station is not required. No readback is necessary.

Voice Clearance

In Dubai, if datalink clearances are unavailable, voice clearances will be provided. These will be brief, covering only your Standard Instrument Departure (SID), initial climb, and squawk code. Ensure you have the latest departure ATIS information before proceeding.

Example

Pilot: "Dubai Delivery, good evening, UAE1GP, Boeing 777-300ER, stand A8, requesting FL360, to Nice, NABIX3F departure, with information F on board."

Controller: "UAE1GP, information F correct, cleared to Nice via the NABIX3F departure, maintain altitude 4000ft, squawk 0542."

Pilot: "Cleared to Nice, NABIX3F departure, maintain altitude 4000ft, squawk 0542, UAE1GP."

Controller: "UAE1GP, readback is correct, QNH 1004, report ready for push and start"

Warning

Clearance delivery will not provide push and start clearance. However, remain on the clearance delivery frequency; do not switch to the ground frequency on your own. You must report fully ready on the delivery frequency—this includes having the jetway disconnected, tug connected, and chocks removed. Delivery will advise when to switch to the appropriate ground frequency, based on the current airport departure rate.

Airport Collaborative Decision Making (A-CDM)

Dubai has implemented Airport Collaborative Decision Making (A-CDM) procedures to ensure efficient operations and reduce time spent at the holding point. Pilots are required to adhere to assigned A-CDM times. When A-CDM procedures are in effect, this will be announced in the ATIS. Pilots should set their Target Off Block Time (TOBT) and update it whenever their estimate changes by more than 5 minutes using the VATMENA vACDM Pilot Interface, aiding controllers in departure planning.

If you are unfamiliar with A-CDM procedures, please refer to the A-CDM pilot guide.

Push & Start

Once clearance delivery releases you to the designated ground frequency, pilots may request push and start clearance. Upon initial contact, the ground controller may provide various types of pushback instructions. Pilots must ensure they can comply with these instructions; if unable, they must inform the ground controller.

Pushback clearances will specify a direction to face, such as West or East, and a particular taxiway to push onto.

Info

The IniBuilds Dubai GSX profile (available through IniManager) includes most of the pushback clearances you can expect. If you don't have this profile installed, ensure you can follow the pushback instructions using the GSX Quick Edit option.

Example

Controller: "UAE4CK, push and start is approved face west onto taxiway Z."

Warning

If pilots are unable to commence pushback within 2-3 minutes, the pushback clearance may be revoked, and slot times will be recalculated.

Taxi

Pilots must comply with all taxi instructions, including holds. Taxi instructions are given based on various factors such as aircraft type and traffic.

Info

Controllers regularly make use of intermediate holding points to optimise traffic flow. These can be found on the Taxi and Parking charts.

Example

Controller: "UAE9LT, Dubai Ground, taxi via Z, L4, hold L4A."

Standard Intersection Departures

For the purposes of takeoff performance planning the standard departure taxiways are:

  • 12R - K5
  • 12L - M1C/N1C
  • 30R - M13/N8A
  • 30L - K15A/M18A

Crews should base their performance calculations on departure from standard departure points from the notified runway in use if there is no restriction to payload.

ATC may tactically use a different departure point nearer the runway end based on the traffic situation.

Runway 30s Configuration

General

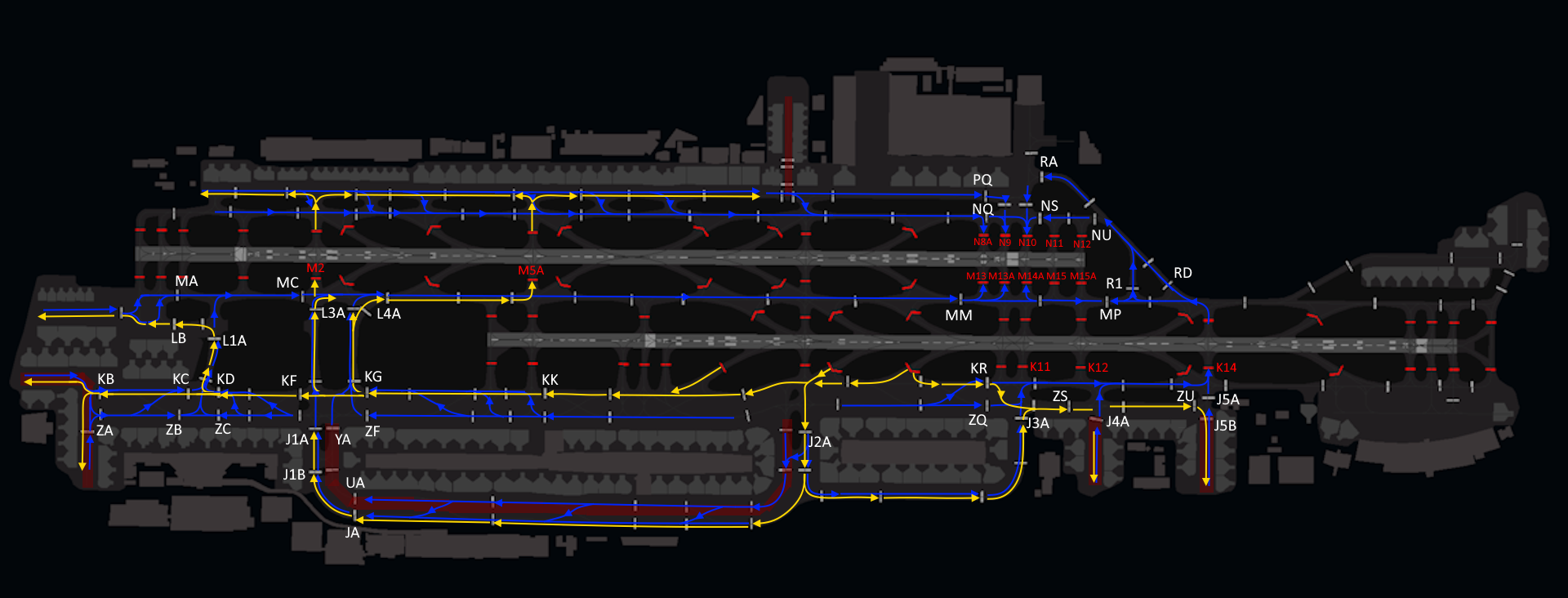

OMDB - 30s Configuration

Runway 12s Configuration

General

OMDB - 12s Configuration

Departure Bias

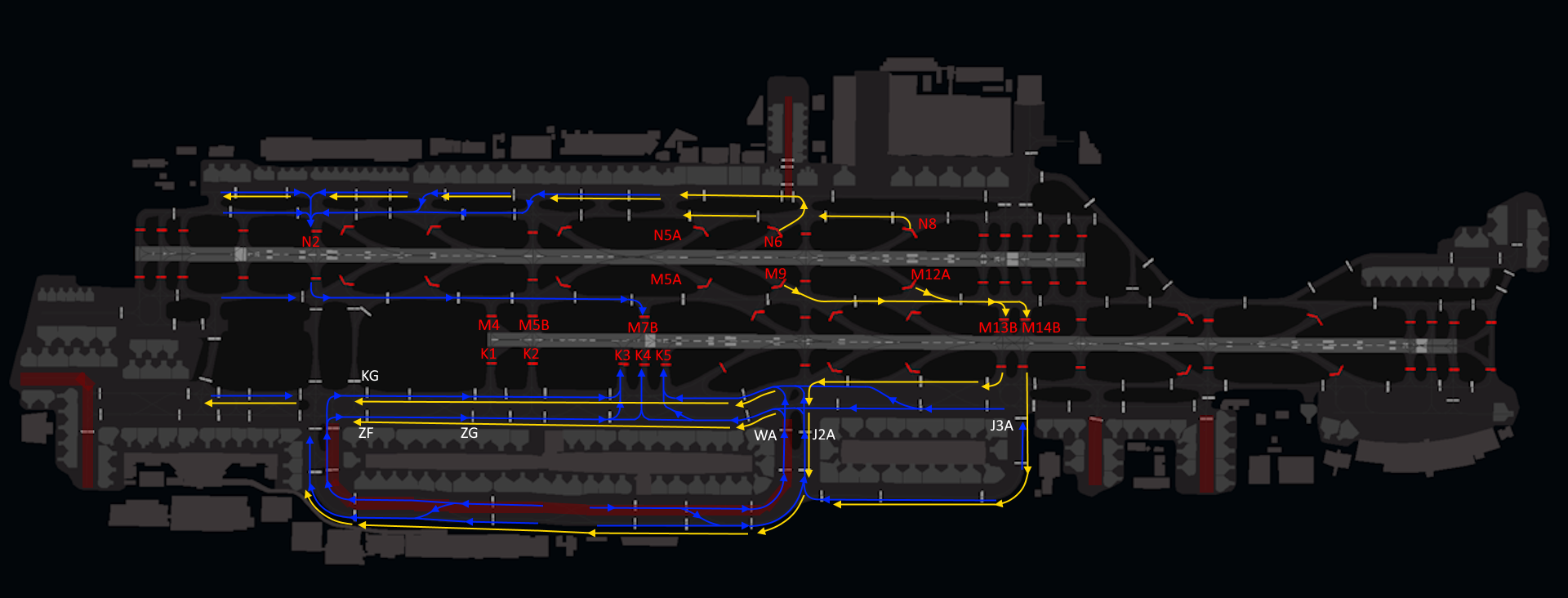

OMDB - 12s Configuration, Departure Bias

Arrival Bias

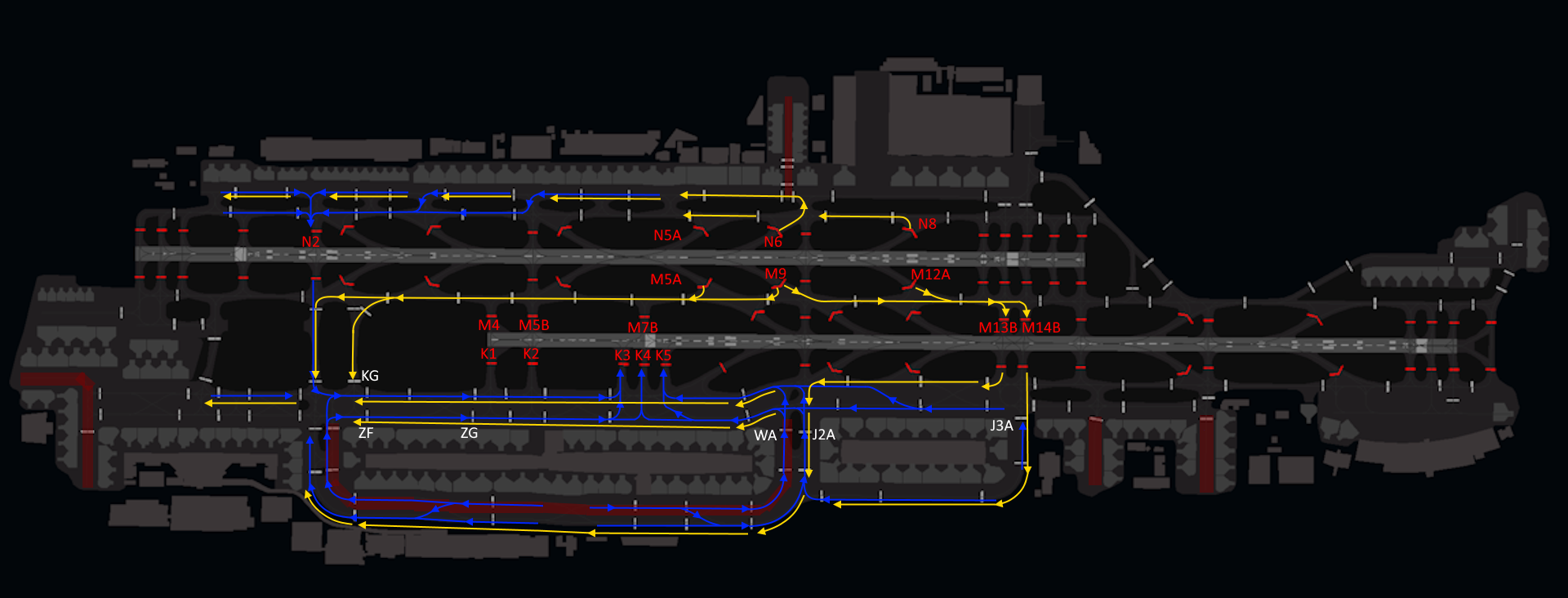

OMDB - 12s Configuration, Arrival Bias

Take-off

Minimum Runway Occupancy

On receipt of a line-up clearance pilots shall ensure, complying with safety and standard operating procedures, that they are able to line-up on the runway as soon as the preceding aircraft has commenced take-off roll.

Wherever possible, pilots are encouraged to conduct a rolling takeoff to minimise runway occupancy time.

Reduced Runway Separation Minima (RRSM)

Reduced runway separation may be implemented at any time, day or night, under the following scenarios:

  • A departing aircraft followed by another aircraft departing from the same runway.
  • Two consecutive landing aircraft.
  • Two consecutive departing aircraft.

Conditions for Application:

  • The tailwind component does not exceed 5 knots at the landing threshold, and there are no pilot reports of wind shear.
  • Meteorological visibility is at least 5000 metres, and the cloud ceiling is not below 1000 feet. The AIR controller must be confident that the following aircraft can continuously and completely observe the relevant traffic.
  • Traffic information is provided to the crew of the succeeding aircraft.
  • The runway is dry, with no indications that braking action will be adversely affected.
  • The AIR controller must be able to assess separation visually or using radar-derived information.
  • Suitable landmarks and surface surveillance markers must be available to assist in assessing aircraft separation.
  • Wake turbulence separation minima must be maintained.
  • Minimum separation must still exist between two departing aircraft immediately after the second aircraft takes off.
  • The pilot of an arriving aircraft must be informed of the expected exit point for runway vacating.
